StatsCosmos: How to apply MapReduce to the Delicious dataset using Hadoop, MongoDB and Spark (Spark-shell, PySpark, Spark Applications, SparkR and SparkSQL)

This post is designed for a joint installation of Hadoop 2.6.0 (single cluster), MongoDB 2.4.9, Spark 1.5.1 (pre-built for Hadoop) and Ubuntu 14.04.3. The illustration builds on the steps covered in part one of the post on the application of the MapReduce programming model to the GroupLens HetRec 2011 Delicious dataset. The procedure involves applying seventeen MapReduces to the dataset. The first six were outlined in part one. The underlying mathematical model to the approach is outlined in the paper Cantador, Bellogin and Vallet (2010).

1. Model

The model starts with a social tagging system with a set of users U, items I, annotations A and tags T, constituting a folksonomy, F.

The users can be assigned profiles based on their tag assignments and the items can be assigned profiles based on the tags used on them. The user profile provides a reflection of the user's tastes, interests and needs. The item’s profile provides a reflection of its contents.

The illustration rests on two key assumptions. The first is that users will annotate items that are relevant for them, hence, the tags they provide can be assumed to describe their interests, tastes and needs. The second is that the tags assigned to an item usually describe its contents. The first follow on assumption is that the more a user uses a particular tag, the more important the tag is for them. The second follow on assumption is that the more an item is annotated with a tag, the better the tag describes its contents. The limitation to the assumptions are that tags that are used by users to annotate many items may not be useful to discern user preference and item features.

The recommendation problem, as formulated in Adomavicius and Tuzhilin (2005), is then, for a given set of users, U = {u₁,....,u_M} and items, I = {i₁,....,i_N} to define g: U * I → ℜ, where ℜ is a totally ordered set, a utility function such that g(u_m,i_n) measures the gain of usefulness of item i_n to user u_m. Then, for each user u ∈ U, the aim is to choose a set of items i^max,u ∈ I , unknown to the user, which maximize the function g:∀ u ∈ U, i^max,u= arg max _i∈Ig(u,i). In content-based recommendation analyses g() can be formulated as:

g(u_m,i_n) = sim(ContentbasedUserProfile(u_m),Content(i_n)) ∈ ℜ, where
ContentbasedUserProfile(u_m) = u_m = (u_m,1,....,u_m,K) ∈ ℝ^k is the content-based preferences of user u_m and
Content(i_n) = i_n= (i_n,1,....,i_n,K) ∈ ℝ^kcis the set of content based features of item i_n.

ContentbasedUserProfile(u_m) and Content(i_n) can usually be represented as vectors of real numbers where each vector component measures the "importance" of the corresponding feature in the user and item representations.

The sim() function measures the similarity between the user profile and the item profile in the content feature space.

The key to the MapReduce constructs is the assignment set, A = {(u_m,t_l,i_n)}∈ U * T * I , of each tag t_l to item i_n by each user u_m. This is available as the assignment dataset if the bookmarked URL's are defined to be the items in the model.

Essentially, a folksonomy can then be defined as a tuple F ={T, U, I, A}, where T={t₁,....,t_L} is the set of tags, U ={u₁,....,u_M} is the set of users that annotate, I ={i₁,....,i_N)} is the set of items that are annotated and A = {(u_m,t_l,i_n)} is the set of annotations. This notation allows one to define a simple profile for user u_m as a vector u_m = (u_m,1,....,u_m,L), where u_m,l = |{(u_m,t_l,i) ∈ A| i ∈ I }| is the number of times user u_mhas annotated items with tag t_l. The profile for item i_n can be defined as the vector i_n= (i_n,1,....,i_n,L), where i_m,l = |{(u,t_l,i_n) ∈ A | u ∈ U }| is the number of times item i_n has been annotated with tag t_l.

In the part one illustration, each of the social tagging system components and the TF-based similarity measures were explored. The relevant constructs provided an illustration of how a particular solution to the social tagging system problem could be formulated using the MapReduce programming model.

The aim of this part two post is to build on the solution (with its constructs) in order to generate other solutions and constructs using the MapReduce programming model.

The core constructs of the MapReduce are the six quantities described in this table from the paper Cantador, Bellogin and Vallet (2010).

The constructs are then the inputs with which to formulate the profile models. The Profile models are the following.

TF Profile model

TF-IDF Profile model

Okapi BM25 Profile model

where b and k₁ are the standard values 0.75 and 2, respectively.

The models allow for the formulation of the similarity measures . The Similarity measures are the following.

TF-based Similarity measures

TF Cosine-based Similarity measure

TF-IDF Cosine-based Similarity measure

Okapi BM25-based Similarity measures

Okapi BM25 Cosine-based Similarity measure

The key approach to keep in mind in the construction of the core components and the profile models is how one defines the key, value pairs for the MapReduce processing. For an example, for the TF Profile Model model, u_{_m,l} defines the tag frequency for tag t_l by user u_mand i_{_n,l}the tag frequency for tag t_l on item i_{_n}.

The formula g(u_{_m},i_{_n}) in the TF-based Similarity measure essentially means that one can take the tf_u(m)(t_l) = u_{_m,l} and tf_i(n)(t_l) = i_{_n,l}terms, attach, the {u_m,i_{_n}} key to the appropriate frequencies in the model (i.e. tf_u(m)(t_l) for non-zero frequency tags in i_{_n}'s profile in the first measure andtf_i(n)(t_l) for non-zero frequency tags in u_{_m}'s profile in the second measure) and conduct MapReduce in order to generate the required numerator sums. In part one the illustration showed how the relevant key indices could be constructed from the A set of the data (i.e. the Assignment dataset).

The data compilation component of this illustration involves constructing the appropriate MapReduce keys for the constructs and profile model terms (namely, unweighted and weighted frequency terms). The keys and values can be compiled into datasets that can be processed. The keys and the profile model terms can then be processed using MapReduce to quantify the Similarity measures using the Similarity measure formulae.

The best way to illustrate this process is to begin, as was shown in part one, from the A set data and core measures table from Cantador, Bellogin and Vallet (2010). In terms of the core measures in the table, the first measure can be constructed using an index of the first column and third columns of the A set. The second measure can be constructed using an index created from the second and third column of the A set. The fifth measure can be constructed using an index created from the first column of the A set. The sixth measure can be constructed using an index created from the second column of the A set. The number of observations in the output file of the fifth MapReduce and the outputs of the first MapReduce can be used to construct the third measure. The number of observations in output file of the sixth MapReduce and the outputs of the second MapReduce can be used to construct the fourth measure.

The profile model formulae can then be used to construct the profile model frequencies (namely, weighted frequencies). The Similarity measure formulae can be used to construct the model Similarity measures (as was shown in part one for the TF-based Similarity).

The remaining eleven MapReduces can be implemented in Hadoop, MongoDB and Spark. The Hadoop and Spark MapReduces can be implemented using mapper-reducer sets prepared in Perl, Python, R and Ruby. The MongoDB MapReduces can be implemented in the MongoDB 2.4.9 shell using mapper and reducer functions.

The MapReduces can be arranged into two categories, namely, one set and three set.
The three set MapReduces can be implemented in Hadoop and Spark using mapper-reducer sets prepared in R and Python. The one set MapReduces can be implemented in Hadoop, MongoDB and Spark. The non-MongoDB one set MapReduces can be implemented using mapper-reducer sets prepared in Perl, Python and Ruby.

In the case of the three set MapReduces, the Python mapper-reducer set is compiled for the MapReduces in Hadoop Streaming, the Spark Pipe facility in a PySpark application (and shell) and Spark Pipe facility in a SparkR application (and shell). The R mapper-reducer set is designed for the Spark Pipe facility in a Java application.

The one set MapReduces are designed for use in Hadoop Streaming, Spark Pipe in the Scala Spark-shell, Spark Pipe in a PySpark application, and Spark Pipe in a SparkR application. In the scheme, the one set MapReduce configuration is designed for the calculation of the Okapi BM25 Similarity measures (MapReduce nine and ten) from the core measures and profile model terms.

2. Prepare the data

The Similarity measure MapReduces can be referenced as one to thirteen, the first two being the TF-based Similarity measures from part one.

Similarity measure MapReduce three, four and five (TF Cosine-based Similarity)

In compiling the data, one can begin with the output files from the core measures and profile model calculations. The next step will be to take from each user and item frequency ( i.e. u_m,land i_n,l in the output files of the core measures) the first part of the index (i.e. the user u_mand i_n, respectively) and create two key, value combinations (i.e. the user u_m,tf_u(m)(t_l) and i_n,tf_i(n)(t_l), respectively) for the Similarity measure MapReduce.

In the mapping phase, the numerator values can be the cross-products (tf_u(m)(t_l) * tf_i(n)(t_l)), and the denominator values can be the squares of the individual values (i.e. (tf_u(m)(t_l))²and (tf_i(n)(t_l))²). In the reduce phase, the values of the numerator cross-products can be summed and the totals output by key. In the case of the denominator entries, the square roots of the sums can be output for each key. This will generate the outputs required by the Similarity measure formulae. This is essentially how the input files for the three set MapReduces can be constructed.

Similarity measure MapReduce six, seven and eight (TF-IDF Cosine-based Similarity)

The approach for the Similarity measure MapReduce six, seven and eight input file creation is similar to that of Similarity measure MapReduce three, four and five, except that one will first create tf_u(m)(t_l)* iuf(t_l) and (tf_i(n)(t_l)* iif(t_l), for the user u_mand item i_n, respectively, according to the TF-IDF Profile model. The rest of the steps follow analogously to that of Similarity measure MapReduce three, four and five.

Similarity measure MapReduce nine and ten (Okapi BM25-based Similarity)

The approach for the Similarity measure MapReduce nine and ten input file creation is similar to that of MapReduce three, four and five.

In the case of Similarity measure MapReduce nine, the approach will be to take the first part of the indices (i.e. the user u_m and item i_n) from the Okapi BM25 Profile model calculations and create a new key (u_m,i_n) for the Similarity measure MapReduce. The next step, is to identify from the items's profile the tags that have non-zero (item) weighted frequencies (i.e. i_n,l= bm25_i(n)(t_l) in the Okapi BM25 Profile model) and allocate the user's weighted tag frequencies (i.e. u_m,l = bm25_u(m)(t_l) from the Okapi BM25 Profile model) for each tag t_l(respectively). This will generate the key, value input file for Similarity measure MapReduce nine.

In the case of Similarity measure MapReduce ten the process is similar but instead one makes use of the user's profile and the item's frequencies. Hence, after the keys have been created in the same manner as in the case of MapReduce nine, one identifies from the user's profile the tags that have non-zero (user) frequencies. The next step is to allocate the item's weighted tag frequencies (i.e. i_n,l = bm25_i(n)(t_l) from the Okapi BM25 Profile model) for each tag t_l(respectively). This will generate the key, value input file for Similarity measure MapReduce ten.

Similarity measure MapReduce eleven, twelve and thirteen (Okapi BM25 Cosine-based Similarity)

The approach for the compilation of the input file for the Similarity measure MapReduce eleven, twelve and thirteen is similar to that of MapReduce three, four and five. The first part will, however, involve creating the key value pairs using the weighted frequencies bm25_u(m)(t_l) and bm25_i(n)(t_l), for the user u_mand item i_n, respectively, according to the Okapi BM25 Profile model. The rest of the steps follow analogously to that of Similarity measure MapReduce three, four and five.

3. Prepare the mapper-reducer sets

Three set mapper-reducer sets

Python mapper-reducer set

The Python mapper-reducer set can be prepared according to the tutorials in this post, this post and this post.

Mapper

	#!/usr/bin/python

	import re
	import sys
	import math
	from signal import signal,SIGPIPE,SIG_DFL

	#Ignore SIG_PIPE and don't throw exceptions on it
	signal(SIGPIPE,SIG_DFL)

	# input comes from STDIN (standard input)
	for line in sys.stdin:
	line = line.strip()
	line = line.split("\t")

	if len(line)>=1:
	Key = line[0]
	val1 = float(line[1])
	val2 = float(line[2])
	valcp = (val1*val2)
	val1sq = (val1*val1)
	val2sq = (val2*val2)

	print '%s\t%s\t%s\t%s' % (Key, valcp, val1sq, val2sq)

view raw PythonThreesetMapper.py hosted with ❤ by GitHub

Reducer

	#!/usr/bin/python

	import re
	import sys
	import math
	from signal import signal,SIGPIPE,SIG_DFL

	#Ignore SIG_PIPE and don't throw exceptions on it
	signal(SIGPIPE,SIG_DFL)

	lastKey = None
	theSum1 = 0
	theSum2 = 0
	theSum3 = 0

	for line in sys.stdin:
	parts = line.split("\t")
	key = parts[0]
	val1 = parts[1]
	val2 = parts[2]
	val3 = parts[3]

	if lastKey==None or lastKey !=key:
	if lastKey !=None:
	print '%s\t%s\t%s\t%s' % (lastKey, theSum1, math.sqrt(theSum2), math.sqrt(theSum3))
	lastKey = key
	theSum1=0
	theSum2=0
	theSum3=0
	theSum1 += float(val1)
	theSum2 += float(val2)
	theSum3 += float(val3)

	if lastKey:
	print '%s\t%s\t%s\t%s' % (lastKey, theSum1, math.sqrt(theSum2),math.sqrt(theSum3))

view raw PythonThreesetReducer.py hosted with ❤ by GitHub

R mapper-reducer set

The R mapper-reducer set can be prepared according to the tutorials in this gist, this post and this post.

Mapper

	#!/usr/bin/env Rscript

	library("magrittr")
	options(warn=-1)

	sink("/dev/null")
	input <- file("stdin", "r")
	while(length(currentLine <- readLines(input, n=1, warn=FALSE)) > 0) {

	fields <- unlist(strsplit(currentLine, "\t"))

	valone<-as.numeric(fields[2])
	valoneS<-valone*valone
	valtwo<-as.numeric(fields[3])
	valtwoS<-valtwo*valtwo
	valc<-valone*valtwo

	sink()

	cat(fields[1],valc,valoneS,valtwoS, "\n", sep="\t")

	sink("/dev/null")

	}
	close(input)

view raw RThreesetMapper.R hosted with ❤ by GitHub

Reducer

	#!/usr/bin/env Rscript

	library(magrittr)
	options(warn=-1)

	trimWhiteSpace <- function(line) gsub("\$\|\$", "", line)
	valTotal <- as.numeric(0)
	valTotal1 <- as.numeric(0)
	valTotal2 <- as.numeric(0)
	oldKey <- ""

	#Loop around the data by the formats such as key-val pair
	input <- file("stdin", "r")
	while(length(currentLine <- readLines(input, n=1, warn=FALSE)) > 0) {
	currentLine1 <- currentLine %>% trimWhiteSpace()
	data_mapped <- unlist(strsplit(currentLine1, ","))

	if (length(data_mapped) !=4) {
	# Something has gone wrong. However, we can do nothing.

	}

	thisKey <- data_mapped[1]
	thisVal <- as.numeric(data_mapped[2])
	thisVal1 <- as.numeric(data_mapped[3])
	thisVal2 <- as.numeric(data_mapped[4])


	if (!identical(oldKey, "") && !identical(oldKey, thisKey)) {
	cat(oldKey, valTotal, valTotal1%>%sqrt(),valTotal2%>%sqrt(), "\n", sep="\t")
	oldKey <- thisKey
	valTotal = 0
	valTotal1 = 0
	valTotal2 = 0
	}

	oldKey = thisKey
	valTotal <- valTotal + thisVal
	valTotal1 <- valTotal1 + thisVal1
	valTotal2 <- valTotal2 + thisVal2

	}

	if (!identical(oldKey, "")) {
	cat(oldKey, valTotal, valTotal1%>%sqrt(), valTotal2%>%sqrt(), "\n", sep ="\t")

	}
	close(input)

view raw RThreesetReducer.R hosted with ❤ by GitHub

One set mapper-reducer sets

The one set mapper-reducer sets can be prepared in Perl, Python and Ruby.

Perl mapper-reducer set

The Perl mapper and reducer sets can be prepared according to the tutorials in this post and this post.

Mapper

	#!/usr/bin/env perl
	while(<>) { # read stdin
	chomp; # remove last char if newline from the implicit variable $_
	my ( $key,$value ) = split(/\t/,$_); # extract key and value
	print $key."\t".$value."\n"; # write to stdout
	}

view raw PerlOnesetMapper.pl hosted with ❤ by GitHub

Reducer

	#!/usr/bin/env perl
	use List::Util qw(sum);

	my %hashTab;
	$total = 0;
	foreach (<>)
	{
	chomp;
	@data = split(/\t/,$_);
	if($#data == 1)
	{
	($key,$val)=@data;
	if(exists($hashTab{$key}))
	{
	$hashTab{$key} =sum($hashTab{$key} + $val);
	}
	else
	{
	$hashTab{$key} = $val;
	}
	# $hashTab{$key} = $total;
	}

	}
	foreach (keys(%hashTab))
	{
	print "$_\t$hashTab{$_}\n";
	}

view raw PerlOnesetReducer.pl hosted with ❤ by GitHub

Python mapper-reducer set

The Python mapper and reducer sets can be prepared according to the tutorials in this post and this post.

Mapper

	#!/usr/bin/env python

	import sys
	from signal import signal,SIGPIPE,SIG_DFL

	# Ignore SIG_PIPE and don't throw exceptions on it
	signal(SIGPIPE,SIG_DFL)

	# input comes from STDIN (standard input)
	for line in sys.stdin:
	# remove leading and trailing whitespace
	line = line.strip()
	# split the line into key value pairs
	parts = line.split("\t")
	key = parts[0]
	Val = float(parts[1])
	print '%s\t%s' % (key, Val)

	# write the results to STDOUT (standard output);
	# what we output here will be the input for the
	# Reduce step, i.e. the input for the Pythonreducer.py
	#
	# tab-delimited;

view raw PythonOnesetMapper.py hosted with ❤ by GitHub

Reducer

	#!/usr/bin/env python

	from operator import itemgetter
	import sys
	from signal import signal,SIGPIPE,SIG_DFL

	# Ignore SIGPIPE and don't throw exceptions on it
	signal(SIGPIPE,SIG_DFL)

	current_key = None
	current_count = 0
	key = None


	# input comes from STDIN
	for line in sys.stdin:
	# remove leading and trailing whitespace
	line = line.strip()

	# parse the input we got from Pythonmapper.py
	key, count = line.split('\t')

	# convert count (current a string) into float
	try:
	count = float(count)
	except ValueError:
	# count was not anumber, so silently
	# ignore/discard this line
	continue

	# this IF-switch only works because Hadoop sorts map output
	# by key before it is passed to the reducer
	if current_key == key:
	current_count += count
	else:
	if current_key:
	# write result to STDOUT
	print '%s\t%s' % (current_key, current_count)
	current_count = count
	current_key = key

	# do not forget to output the last key if needed!
	if current_key == key:
	print '%s\t%s' % (current_key, current_count)

view raw PythonOnesetReducer.py hosted with ❤ by GitHub

Ruby mapper-reducer set

The Ruby mapper-reducer set can be prepared according to the tutorials in this post, this post and this post.

Mapper

	#!/usr/bin/env ruby
	Signal.trap("SIGPIPE", "SYSTEM_DEFAULT")

	while line = gets
	parts = line.split("\t")
	key = parts[0].strip
	val = parts[1].strip.to_f
	puts "#{key}\t#{val}"
	end

view raw RubyOnesetMapper.rb hosted with ❤ by GitHub

Reducer

	#!/usr/bin/env ruby

	Signal.trap("SIGPIPE", "SYSTEM_DEFAULT")
	# Create an empty key hash
	keyhash = {}

	# Our input comes from STDIN, operating on each line
	STDIN.each_line do \|line\|

	# Each line will represent key and count
	key, count = line.strip.split


	# If we have the key in the hash, add the count to it, otherwise
	# create a new one.
	if keyhash.has_key?(key)
	keyhash[key] += count.to_f
	else
	keyhash[key] = count.to_f
	end

	end

	# Iterate through and emit the key counters
	keyhash.each {\|record, count\| puts "#{record}\t#{count}"}

view raw RubyOnesetReducer.rb hosted with ❤ by GitHub

4. Process the data in Hadoop, MongoDB and Spark

Three set MapReduce

Hadoop Streaming

In order to implement the first three set MapReduce using the Hadoop Streaming facility the following arrangements need to be made.

Input data file: InputData.txt (tab-separated)
Local system Hadoop Streaming jar file folder: <Local System hadoop streaming jar file folder>
Local system mapper file folder: <Local System mapper File Folder>
Local system reducer file folder:<Local System reducer File Folder>
Hadoop Distributed File System (HDFS) input data folder: <HDFS Input Data Folder>
HDFS output data folder: <HDFS Output Data Folder>

The similarity measure MapReduce three, four and five can be conducted in the Hadoop Streaming facility using the following command on Ubuntu 14.04.3:

	$ hadoop jar
	<Local System Hadoop Streaming jar File Folder>/hadoop-streaming-2.6.0.jar
	-file <Local System mapper File Folder>/PythonThreesetMapper.py
	-mapper <Local System mapper File Folder>/PythonThreesetMapper.py
	-file <Local System reducer File Folder>/PythonThreesetReducer.py
	-mapper <Local System reduce File Folder>/PythonThreesetReducer.py
	-partitioner org.apache.hadoop.mapred.lib.KeyFieldBasedPartitioner
	-input <HDFS Input Data Folder>/InputData.txt
	-output <HDFS Output Data Folder>

view raw HadoopStreamingThreesetMapReduce_submit hosted with ❤ by GitHub

These are the contents of the resulting output file.

PySpark application

The similarity measure MapReduce six, seven and eight can be conducted in the PySpark Pipe facility. In order to implement the MapReduce using the PySpark Pipe facility the following arrangements need to be made.

Input data file: InputData.txt (tab-separated)
Local system input data folder: <Local System Input Data Folder>
Local system mapper file folder: <Local System mapper File Folder>
Local system reducer file folder:<Local System reducer File Folder>
Local system output data folder: <Local System Output Data Folder>

The next step is to prepare the following application prepared using the tutorials in this book, this post, this post, this post, this guide, this guide, this post, and this post.

	"""PySparkThreesetPipeApp.py"""
	import sys
	from pyspark import SparkContext
	from pyspark import SparkFiles
	from pyspark.sql import SQLContext
	from pyspark.sql import Row
	from pyspark.sql.types import *
	from pyspark.sql.types import StringType
	from pyspark.sql.functions import udf, col

	sc = SparkContext("local", "PySparkThreesetPipeApp")
	sqlContext = SQLContext(sc)
	rdd = sc.textFile("<Local System Input Data Folder>/InputData.txt")

	funcm = '<Local System mapper Folder>/PythonThreesetMapper.py'
	funcr = '<Local System reducer Folder>/PythonThreesetreducer.py'

	def preparem(line):
	"""Each line contains numbers separated by a tab."""
	return '\t'.join(line.split('\t')) + '\n'

	sc.addFile(funcm)
	mappedrdd = rdd.map(lambda s: preparem(s)).pipe(SparkFiles.get(funcm)).coalesce(1)

	rdd1 = mappedrdd.map(lambda x: x.split("\t"))
	rdd2 = rdd1.map(lambda x: (x[0],x[1],x[2],x[3]))
	p = rdd2.count()
	rdd3 = rdd2.takeOrdered(p)
	rdd4 = sc.parallelize(rdd3)
	rdd5 = rdd4.map(lambda (w,x,y,z): w + "\t" + x + "\t" + y + "\t" + z + "\n")

	def preparer(line):
	"""Each line contains numbers separated by a tab."""
	return '\t'.join(line.split('\t')) + '\n'

	sc.addFile(funcr)
	rdd6= rdd5.map(lambda s: preparer(s)).pipe(SparkFiles.get(funcr))

	rdd6.saveAsTextFile(“<Local System Output Data Folder>”)

	#sqlContext Query

	def string_to_float(x): return float(x)
	udfstring_to_float = udf(string_to_float, StringType())
	rdd7 = rdd6.map(lambda x: x.split("\t"))
	rdd8 = rdd7.map(lambda x: ((x[0]).strip(),string_to_float([x[1]),string_to_float(x[2]),string_to_float(x[3])))

	df = sqlContext.createDataFrame(rdd8)
	df.show(20)

view raw PySparkThreesetPipeApp.py hosted with ❤ by GitHub

The next step is to save the application in a Python file (i.e. PySparkThreesetPipeApp.py) in a local system folder and use spark-submit to run the application.

	$ YOUR_SPARK_HOME/bin/spark-submit \
	--master local [4] \
	<Local System Application Folder>/PySparkThreesetPipeApp.py

view raw PySparkThreesetPipeApp_Submit hosted with ❤ by GitHub

This will result in the following SQL query (of the contents of the output file).

Java Spark application

The similarity measure MapReduce nine, ten and eleven can be conducted in the Java Spark application Pipe facility. In order to implement the MapReduce using the Java Pipe facility the following arrangements need to be made.

Input data file: InputData.txt (tab-separated)
Local system input data folder: <Local System Input Data Folder>
Local system mapper file folder: <Local System mapper File Folder>
Local system reducer file folder:<Local System reducer File Folder>
Local system output data folder: <Local System Output Data Folder>

The MapReduce can implemented using the following application prepared using the tutorials in this website, this guide, this book, this book, this programming guide, this post, the SparkSQL website, this website and this post.

	import java.util.ArrayList;
	import java.util.List;

	import org.apache.spark.SparkConf;
	import org.apache.spark.SparkFiles;
	import org.apache.spark.api.java.JavaPairRDD;
	import org.apache.spark.api.java.JavaRDD;
	import org.apache.spark.api.java.JavaSparkContext;
	import org.apache.spark.api.java.function.Function;
	import org.apache.spark.api.java.function.PairFunction;
	import org.apache.spark.sql.SQLContext;
	import org.apache.spark.sql.DataFrame;
	import org.apache.spark.sql.Row;
	// Import factory methods provided by DataTypes
	import org.apache.spark.sql.types.DataTypes;
	// Import StructType and StructField
	import org.apache.spark.sql.types.StructType;
	import org.apache.spark.sql.types.StructField;
	// Import RowFactory
	import org.apache.spark.sql.RowFactory;

	import scala.Tuple2;
	import scala.Tuple3;

	public class SimpleThreesetPipeApp {

	public static void main(String[] args) throws Exception {
	String inputFile = args[0];
	String outputFolder = args[1];
	// Create a Java Spark Context.
	// Create a Java Spark SQLContext.
	SparkConf conf = new SparkConf().setAppName("SimpleThreesetPipeApp");
	JavaSparkContext sc = new JavaSparkContext(conf);
	SQLContext sqlContext = new org.apache.spark.sql.SQLContext(sc);

	// load out input data.
	JavaRDD<String> input = sc.textFile(inputFile);

	// Pipe the data to external script
	String mapperScript = "<Local System mapper file Folder>/RThreesetMapper.R";
	String mapperScriptName = "ThreesetMapper.R";
	String reducerScript = "<Local System mapper file Folder>/RThreesetReducer.R";
	String reducerScriptName = "ThreesetReducer.R";

	// Add the mapper
	sc.addFile(mapperScript);

	JavaRDD<String> pipeInputs = input;
	JavaRDD<String> pipeRDD1 = pipeInputs.pipe(SparkFiles.get(mapperScriptName));

	// Add the reducer
	sc.addFile(reducerScript);

	JavaPairRDD<String, Tuple3<Float,Float,Float>> pipeInputs2 = pipeRDD1.mapToPair(
	new PairFunction <
	String, //T (<String, Float,Float,Float>
	String, //K key
	Tuple3<Float,Float,Float> // V <Float,Float,Float>
	>(){
	/**
	*
	*/
	private static final long serialVersionUID = 1L;

	public Tuple2<String, Tuple3<Float,Float,Float>> call (String s){
	String[] record = s.split("\t");
	String key = record[0];
	Float Freq1 = new Float(record[1]);
	Float Freq2 = new Float(record[2]);
	Float Freq3 = new Float(record[3]);
	Tuple3<Float,Float,Float> Frequencies =
	new Tuple3<Float,Float,Float> (Freq1,Freq2,Freq3);
	return new Tuple2<String,Tuple3<Float,Float,Float>>
	(key,Frequencies);
	}
	}).sortByKey().coalesce(2, true);
	JavaRDD<String> pipeRDD2 = pipeInputs2.pipe(SparkFiles.get(reducerScriptName));
	pipeRDD2.saveAsTextFile(outputFolder);

	// The schema is encoded in a string
	String schemaString = "key freq1 freq2 freq3";

	// Generate the schema based on the string of schema
	List<StructField> fields = new ArrayList<StructField>();
	for (String fieldName: schemaString.split(" ")) {
	fields.add(DataTypes.createStructField(fieldName, DataTypes.StringType, true));
	}
	StructType schema = DataTypes.createStructType(fields);

	// Convert records of the RDD (pipeRDD2) to Rows.
	JavaRDD<Row> rowRDD = pipeRDD2.map(
	new Function<String, Row>() {
	/**
	*
	*/
	private static final long serialVersionUID = 1L;

	public Row call(String record) throws Exception {
	String[] fields = record.split("\t");
	return RowFactory.create(fields[0], fields[1].trim(), fields[2].trim(), fields[3].trim());
	}
	});

	// Apply the schema to the RDD
	DataFrame pipeRDD2DataFrame = sqlContext.createDataFrame(rowRDD, schema);

	// Register the DataFrame as table.
	pipeRDD2DataFrame.registerTempTable("pipeRDD2");

	// SQL can be run over RDDs that have been registered as tables.
	DataFrame results = sqlContext.sql("SELECT key, freq1,freq2,freq3 FROM pipeRDD2");

	// The results of SQL queries are DataFrames and support all the normal RDD oprations
	// The columns of a row in the result can be accessed by ordinal.
	List<String> names = results.javaRDD().map(new Function<Row, String>(){
	/**
	*
	*/
	private static final long serialVersionUID = 1L;

	public String call(Row row) {
	return "ItemUser: Freq1: Freq2: Freq3: " + row.getString(0) + "\t " + row.getString(1)
	+ "\t " + row.getString(2) + "\t " + row.getString(3);
	}
	}).collect();
	for (String s: names) {
	System.out.println(s);
	}
	}
	}

view raw JavaSparkThreesetPipeApp.java hosted with ❤ by GitHub

The next step is to save the application in a java file (i.e. JavaSparkThreesetPipeApp.java) in a local system folder, export the java file to a jar file JavaSparkThreesetPipeApp.jar (in a local system folder) and use bin/spark-submit to run the application.

This will result in the following SQL query.

One set MapReduce

The next step is to implement similarity measure MapReduce nine and ten. These can be implemented in MongoDB, the Spark Pipe facility using a SparkR application and the Spark Pipe facility using a Scala Spark-shell program.

MongoDB-shell

The one-set MapReduce for the Okapi BM25-based similarity for the User and Item measure can be prepared using programs in the MongoDB 2.4.9 shell.

The first step is to read the data into MongoDB database <MongoDB database> (in this illustration DeliciousMR) and collection<MongoDB collection>.

In this illustration the collection for the BM25 User collection is BM25UserSimilarity and the collection for the BM25 Item collection is BM25ItemSimilarity. The MapReduce collections are map_reduce_BM25UserSimilarity for the BM25-based User Similarity measure and map_reduce_BM25ItemSimilarity for the BM25-based Item Similarity measure.

The use db command can be used to switch to the DeliciousMR database.

use DeliciousMR

view raw MongoDBUseDB hosted with ❤ by GitHub

The db.BM25UserSimilarity.find().pretty() command can be used to view the BM25-based User Similarity measure collection.

The next step is to run the following program for the MapReduce prepared using the tutorials in this post and this post.

	var mapFunction = function() {
	emit(this.MRIndex, this.BM25);
	};
	var reduceFunction = function(keyMRIndex, valuesBM25) {
	return Array.sum(valuesBM25);
	};
	db.BM25UserSimilarity.mapReduce(
	mapFunction,
	reduceFunction,
	{ out: "map_reduce_BM25UserSimilarity" }
	)

view raw MongoDBUserSimilarityMapReduce hosted with ❤ by GitHub

This will generate the following output.

The db.collection.find().pretty() command in the Mongo shell will generate the following output for the BM25-based User similarity.

The db.BM25ItemSimilarity.find().pretty() command can be used to view the BM25-based Item Similarity measure collection.

The MapReduce procedure can then be implemented for the BM25-based Item similarity.

The find().pretty() command will generate the following output.

The results can then be queried in the Scala Spark-shell and in Spark applications.

SparkR Application

In order to implement the first one set MapReduce using a Spark Pipe SparkR application and query the results in MongoDB (RMongoDB and PyMongo) the following arrangements should be made.

Input data file: InputData.txt (tab-separated)
Local system input data folder: < Local System Input Data Folder>

Local system mapper file folder: < Local System mapper File Folder >

Local system reducer file folder: < Local System reducer File Folder >

Local system output data file folder: < Local System Output Data Folder>
MongoDB instance: Have an instance of MongoDB with the arrangements in the MongoDB illustration

The MapReduce (and query) can be implemented using an application and a script file. The script (for the application and the supporting script) can be prepared using the tutorials in this post, this post, this post, this document, this post, this post, this post, this post, this post, this post, this post, this post and this post. The next step is to save the following SparkR application and SparkRApplicationScript files in appropriate local system folders.

	library(SparkR)
	library(magrittr)
	library(rmongodb)

	sc <- sparkR.init(master="local")
	sqlContext <- sparkRSQL.init(sc)

	lines <- SparkR:::textFile(sc, "<Local System Input Data Folder>/InputData.txt")
	rdd1<- SparkR:::flatMap(lines,function(line) { strsplit(line, " ")[[1]]})
	mapperpipeArg<- c("<Local System mapper Folder>/PythonOnesetMapper.py")
	rdd2 <-SparkR:::pipeRDD(rdd1,mapperpipeArg)

	#Need a sort by key
	rdd2sort <-SparkR:::sortByKey(rdd2)

	reducerpipeArg<- c("<Local System reducer Folder>/PythonOnesetReducer.py")
	rdd3<-SparkR:::pipeRDD(rdd2sort,reducerpipeArg)
	parseFields <-function(record) {
	Sys.setlocale("LC_ALL", "C"); # necessary for strsplit() to work correctly
	parts <- strsplit(record, "\t")[[1]];
	list(parts[1],parts[2])
	}
	parsedRDD <- SparkR:::lapply(rdd3, parseFields)


	SparkR:::saveAsTextFile(rdd, "<Local System Output Data Folder>")
	output <- collect(parsedRDD)
	df <- createDataFrame(sqlContext, output)
	df %>% head()
	df %>% showDF()
	fsummary<-(SparkR:::describe(df,"_2")) %>% collect()
	fsummary
	subsetDF <- subset(df, df$"_1" %in% c("8;1;"), c(1,2))
	subsetDF %>% showDF()

	#Connect to MongoDB
	mongo = mongo.create(host"localhost")
	mongo.is.connected(mongo)

	#User Similarity
	bson <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25UserSimilarity", query = '{"_id":"8;1;"}')
	bson

	#Item Similarity
	bson1 <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25ItemSimilarity", "query = '{"_id":"8;1;"}')
	bson1


	#Run the query using pymongo and system2

	#command
	command = "python"

	#note the single + double quotes in the string (needed if paths have spaces)
	path2script = '"<Local System SparkRApplicationScript Folder>/SparkROneSetAppScript.py"'
	output =system2(command,path2script,stdout=TRUE)

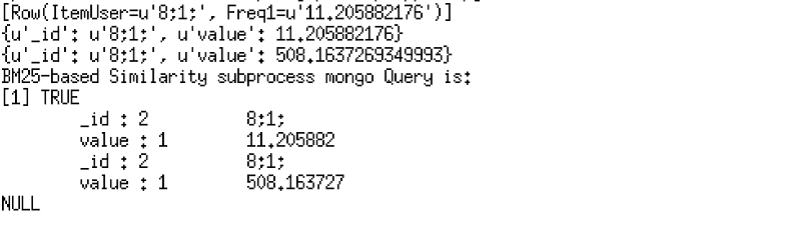

	print(paste("BM25-based Similarity system2 Mongo Query is:", output))

view raw SparkROnesetPipeApp.R hosted with ❤ by GitHub

	from pymongo import Connection

	#Set up the environment
	connection = Connection()

	#connect to the database
	db = connection.DeliciousMR

	#User Similarity
	collection = db.map_reduce_BM25UserSimilarity
	q = collection.find_one("8;1;")
	print(q)

	#Item Similarity
	collection = db.map_reduce_BM25ItemSimilarity
	r = collection.find_one("8;1;")
	print(r)

view raw SparkROneSetAppScript.py hosted with ❤ by GitHub

The application can be run using the bin/spark-submit script.

	$ YOUR_SPARK_HOME/bin/spark-submit \
	--master local [4] \
	<Local System SparkR Application Folder>/SparkROneSetPipeApp.R

view raw SparkROnesetPipeApp_Submit hosted with ❤ by GitHub

These are the contents of the resulting output file/SQL query/NoSQL query.

Scala Spark-shell

The similarity measure MapReduce nine can be conducted using the Spark Pipe facility in a Scala Spark-shell program. The program can be complemented with MongoDB queries using RMongoDB and PyMongoDB. The first step is to make the following arrangements.

Input data file: InputData.txt (tab-separated)

Local system input data folder: < Local System Input Data Folder>

Local system mapper file folder: < Local System mapper File Folder >

Local system reducer file folder: < Local System reducer File Folder >

Local system output data file folder: < Local System Output Data Folder>
MongoDB instance: Have an instance of MongoDB with the arrangements in the MongoDB illustration

The next step is to save the following scripts in appropriate local system folders.

	library(rmongodb)
	#connect to mongoDB
	mongo = mongo.create(host = "localhost")
	mongo.is.connected(mongo)

	# User Similarity
	bson <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25UserSimilarity", query ='{"_id": "8;1;"}')
	bson

	# Item Similarity
	bson1 <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25ItemSimilarity", query ='{"_id": "8;1;"}')
	bson1

	#Close connection
	mongo.destroy(mongo)

view raw ScalaSpark-shellRMongoScript.R hosted with ❤ by GitHub

	from pymongo import Connection

	#Set up the environment
	connection = Connection()

	#connect to the database
	db = connection.DeliciousMR

	#User Similarity
	collection = db.map_reduce_BM25UserSimilarity
	q = collection.find_one("8;1;")
	print(q)

	#Item Similarity
	collection = db.map_reduce_BM25ItemSimilarity
	r = collection.find_one("8;1;")
	print(r)

view raw ScalaSpark-shellPyMongoScript.py hosted with ❤ by GitHub

The next step is to run the following program prepared using the tutorials in this post, this post, this post, this post, this post, this guide and this post.

	// Import the implicits and sys.process
	import sqlContext.implicits._
	import scala.sys.process._

	val data = sc.textFile("<Local System Input Data Folder>/InputData.txt")

	val scriptPathm = "<Local System mapper Folder>/PerlOnesetMapper.pl"
	val scriptPathr = "<Local System reducer Folder>/PerlOnesetReducer.pl"

	val pipeRDD = data.pipe(scriptPathm).coalesce(1)

	val pipeSortRDD = pipeRDD.sortBy[String]({a => a}, false)
	val data1RDD = pipeSortRDD.flatMap(line => line.split(“,“))

	val pipe1RDD = data1RDD.pipe(scriptPathr)
	val pipe2RDD = pipe1RDD.flatMap(line => line.split(“,“))
	pipe2RDD.saveAsTextFile(“<Local System Output Folder>”)

	// First define a case class for the RDD/data/Pipe
	case class Item(ItemUser: String, Freq: Float)
	val bookmarkuser = pipe2RDD.map(_.split("\t")).map(p => Item(p(0), p(1).toFloat)).toDF()

	bookmarkuser.show()
	bookmarkuser.filter(bookmarkuser("Freq")>0).show()
	bookmarkuser.filter(bookmarkuser("Freq")>3500).show()
	bookmarkuser.describe().show()

	// Query for user 8 and item 1
	bookmarkuser.filter("ItemUser = '8;1;'").show()

	//Next run a query on MongoDB using RMongoDB
	val rmongoquery ="Rscript <Local System RMongoDB Script Folder>/ScalaSpark-shellRMongoScript.R".!!
	print(rmongoquery)

	//Next run a query on MongoDB using PyMongo
	val pymongoquery = "python <Local System PyMongoDB Script Folder>/ScalaSpark-shellPyMongoScript.py".!!
	print(pymongoquery)

view raw ScalaOnesetPipeProgram hosted with ❤ by GitHub

These are the contents of the resulting output file/SQL query/NoSQL query.

5. Query/Analyze the results

Once all the output data has been generated, one can conduct queries using MongoDB, a PySpark application, a SparkR application and a Java application. The BM25-based measures were calculated for user 8 and item 1. The queries using MongoDB, the Spark Pipe facility in a SparkR application (including RMongoDB) and the Spark Pipe facility in a Scala Spark-shell program were shown in the last section.

The three set TF-IDF Cosine-based Similarity measure query for user 8 and item 1 can be generated using a SparkR application prepared using the tutorials in this post, this post, this post, this document, this post, this post, this guide, this guide, this post, this post, this post and this post. The query can also be complemented with the one set MapReduce queries in MongoDB and PyMongo.

The first step is to make the following arrangements.

Input data file: InputData.txt (tab-separated)

Local system input data folder: < Local System Input Data Folder>

Local system mapper file folder: < Local System mapper File Folder >

Local system reducer file folder: < Local System reducer File Folder >

Local system output data file folder: < Local System Output Data Folder>

MongoDB instance: Have an instance of MongoDB with the arrangements in the MongoDB illustration

In order to generate a query the following application file and application script file can be saved in local system folders.

	#!/usr/bin/env Rscript

	library(SparkR)
	library(magrittr)
	library(rmongodb)

	sc <- sparkR.init(master="local")
	sqlContext <- sparkRSQL.init(sc)


	lines <- SparkR:::textFile(sc, "<Local System Input Data Folder>/InputData.txt")
	rdd<- SparkR:::flatMap(lines,function(line) { strsplit(line, " ")[[1]]})
	mapperpipeArg<- c("<Local System mapper Folder>/PythonThreesetMapper.py")
	piperdd <-SparkR:::pipeRDD(rdd,mapperpipeArg)

	#Need a sort by key

	piperddsort <-SparkR:::sortByKey(piperdd)
	reducerpipeArg<- c("<Local System reducer Folder>/PythonThreesetReducer.py")
	pipe2rdd<-SparkR:::pipeRDD(piperddsort,reducerpipeArg)

	SparkR:::saveAsTextFile(pipe2rdd, "<Local System Output Data Folder>")

	#Now we need to parse our RDD
	parseFields <-function(record) {
	Sys.setlocale("LC_ALL", "C"); # necessary for strsplit() to work correctly
	parts <- strsplit(record, "\t")[[1]];
	list(parts[1],parts[2],parts[3],parts[4])
	}
	parsedRDD <- SparkR:::lapply(pipe2rdd, parseFields)

	output <- collect(parsedRDD)
	df <- createDataFrame(sqlContext, output)
	df %>% showDF()

	#SQL query
	subsetDF <- subset(df, df$"_1" %in% c("8;1;"), c(1,2,3,4))
	subsetDF %>% showDF()

	#No-SQl query

	#Connect to MongoDB
	mongo = mongo.create(host"localhost")
	mongo.is.connected(mongo)

	#User Similarity
	bson <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25UserSimilarity", query = '{"_id":"8;1;"}')
	bson

	#Item Similarity
	bson1 <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25ItemSimilarity", "query = '{"_id":"8;1;"}')
	bson1

	#Run the query using pymongo and system2

	#command
	command = "python"

	#note the single + double quotes in the string (needed if paths have spaces)
	path2script = '"<Local System SparkRApplication Folder>/SparkRThreeSetAppScript.py"'
	output =system2(command,path2script,stdout=TRUE)
	print(paste("BM25-based Similarity system2 Mongo Query is:", output))

view raw SparkRThreesetPipeApp.R hosted with ❤ by GitHub

	from pymongo import Connection

	#Set up the environment
	connection = Connection()

	#connect to the database
	db = connection.DeliciousMR

	#User Similarity
	collection = db.map_reduce_BM25UserSimilarity
	q = collection.find_one("8;1;")
	print(q)

	#Item Similarity
	collection = db.map_reduce_BM25ItemSimilarity
	r = collection.find_one("8;1;")
	print(r)

view raw SparkRThreeSetAppScript.py hosted with ❤ by GitHub

The application can be run using the bin/spark-submit script.

	$ YOUR_SPARK_HOME/bin/spark-submit \
	--master local [4] \
	<Local System SparkR Application Folder>/SparkRThreesetPipeApp.R

view raw SparkRThreesetPipeApp_Submit hosted with ❤ by GitHub

This will generate the following output.

The three set TF Cosine-based Similarity measure query for user 8 and item 1 can be generated using a Java application. This can be done by firstly appending the Java application code from the last section in line 110 and line 111 as follows.

	// SQL can be run over RDDs that have been registered as tables.
	DataFrame results = sqlContext.sql("SELECT key, freq1,freq2,freq3 FROM pipeRDD2 WHERE key ='8;1;'");

view raw JavaAppQuery8_1.java hosted with ❤ by GitHub

The next step is to run the application (using the bin/spark-submit) with the input file for Similarity measure MapReduce three, four and five. This will generate the following output.

The three set TF-IDF Cosine-based Similarity measure query for user 8 and item 1 can be generated using a Java application with the appended code and using the input file for Similarity measure MapReduce six, seven and eight. The bin/spark-submit run will generate the following output.

The three set Okapi BM25 Cosine-based Similarity measure query for user 8 and item 1 can be generated using a Java application with the appended code and using the input file for Similarity measure MapReduce eleven, twelve and thirteen. The bin/spark-submit run will generate the following output.

The one set TF-IDF Cosine-based Similarity measure for user 8 and item 1 can be generated using a PySpark application. In order to implement the first one set MapReduce using a Spark Pipe PySpark application and query results in MongoDB (using RMongoDB and PyMongo) the following arrangements should be made.

Input data file: InputData.txt (tab-separated)

Local system input data folder: < Local System Input Data Folder>

Local system mapper file folder: < Local System mapper File Folder >

Local system reducer file folder: < Local System reducer File Folder >

Local system output data file folder: < Local System Output Data Folder>

MongoDB instance: Have an instance of MongoDB with the arrangements in the MongoDB illustration

The PySpark application script (and supporting file script) can be prepared using the tutorials in this post, this post, this post, this post, this post, this guide, this guide, this post and this post. The following PySpark application file (PySparkPipeOnesetApp.py) and PySpark Application script file (PySparkOneSetAppScript.R) can be saved in local system folders.

	"""PySparkPipeOnesetApp.py"""
	from pyspark import SparkContext
	from pyspark import SparkFiles
	from pyspark.sql import SQLContext
	from pyspark.sql import Row
	from pyspark.sql import import *
	from time import time
	from pymongo import Connection


	#Set up the environment
	connection = Connection()
	sc = SparkContext("local", "SimplePipeApp2")
	sqlContext = SQLContext(sc)

	#Obtain the input data
	rdd = sc.textFile("<Local System Input Data Folder>/InputData.txt")

	#Obtain the mapper and reducer
	funcm = '<Local System mapper Folder>/RubyOnesetMapper.rb'
	funcr = '<Local System reducer Folder>/RubyOneseteducer.rb'

	#Prepare the data for processing
	def preparem(line):
	"""Each line contains numbers separated by a tab."""
	return ' '.join(line.split(' ')) + '\n'

	sc.addFile(funcm)

	rddpipe = rdd.map(lambda s: preparem(s)).pipe(SparkFiles.get(funcm)).coalesce(1)

	#Sort the data
	rddpipesplit = rddpipe.map(lambda x: x.split("\t"))
	rddpipesplit2 = rddpipesplit.map(lambda x: (x[0],x[1]))
	p = rddpipesplit2.count()
	listSort = rddpipesplit2.takeOrdered(p)
	rddlistSort = sc.parallelize(listSort)
	rddpipeSorted = rddlistSort.map(lambda (x,y): x + "\t" + y)


	#Prepare the data for processing
	def preparer(line):
	"""Each line contains numbers separated by a space."""
	return '\t'.join(line.split('\t')) + '\n'
	sc.addFile(funcr)

	rddpipe1 = rddpipeSorted.map(lambda s: preparer(s)).pipe(SparkFiles.get(funcr))

	rddpipe1.saveAsTextFile("<Local System Output Data Folder>")

	#prepare the data
	rddpipe1split = rddpipe1.map(lambda x: x.split("\t"))
	rddpipe2 = rddpipe1split.map(lambda x: (x[0],x[1]))
	df = sqlContext.createDataFrame(rddpipe2)

	t0 - time()
	df.show(25)
	tt = time() - t0
	print "Query performed in {} seconds".format(round(tt,3))


	#""establish the connection and query the data from MongoDb

	#The schema is encoded in a string
	schemaString = "ItemUser Freq1'

	fields = [StructField(field_name,StringType(),True) for field_name in schemaString.split()]
	schema = StructType(fields)

	#Apply the schema to the data
	df1 = sqlContext.createDataFrame(rddpipe2,schema)

	# Register the DataFrame as a table
	df1.registerTemptable("Similarity")
	results = sqlContext.sql("SELECT ItemUser, Freq1 FROM Similarity")
	results.show()
	df2= results.filter("ItemUser in ('8;1;')").collect()
	print(df2)

	#connect to the database
	db = connection.DeliciousMR

	#Obtain the data from MongoDB

	#User Similarity
	collection = db.map_reduce_BM25Similarity
	q = collection.find_one("8;1;")
	print(q)

	#Item Similarity
	collection = db.map_reduce_BM25ItemSimilarity
	r = collection.find_one("8;1;')
	print(r)

	#Query using rmongodb and subprocess

	#Define command and arguments
	command - 'Rscript'
	path2script = '<Local System PySparkOnesetApplicationScript Folder>/PySparkOneSetAppScript.R'

	#Build subprocess command
	cmd =[command,path2script]

	#check_output will run the command and store to result
	x = subprocess.check_output(cmd,universal_newlines=True)

	print('BM25-based Similarity subprocess mongo Query is:')
	print(x)

view raw PySparkPipeOnesetApp.py hosted with ❤ by GitHub

	library(rmongodb)
	#connect to mongoDB
	mongo = mongo.create(host = "localhost")
	mongo.is.connected(mongo)

	# User Similarity
	bson <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25UserSimilarity", query ='{"_id": "8;1;"}')
	bson

	# Item Similarity
	bson1 <- mongo.find.one(mongo, "DeliciousMR.map_reduce_BM25ItemSimilarity", query ='{"_id": "8;1;"}')
	bson1

	#Close connection
	mongo.destroy(mongo)

view raw PySparkOneSetAppScript.R hosted with ❤ by GitHub

The next step is to use spark-submit to run the application..

	$ YOUR_SPARK_HOME/bin/spark-submit \
	--master local [4] \
	<Local System Application Folder>/PySparkPipeOnesetPipeApp.py

view raw PySparkOnesetPipeApp_Submit hosted with ❤ by GitHub

This will generate the following output.

6. Conclusions

The post provided an illustration of how to implement the MapReduce programming model to the GroupLens HetRec 2011 dataset using the methodology outlined in Cantador, Bellogin and Vallet (2010). The approach can be further fine tuned to conduct the other analyses outlined in the paper.

Interested in other Big data analyses and Cloud computing resources from the Stats Cosmos blog?

Check out our other blog posts
